SHAHPAR-II (BLOCK-II) BATTLE TESTED – UCAV

Shahpar-II Block-II is a composite-framed MALE strike drone featuring autonomous flight capabilities, redundant data links, and multi-weapon payload integration.
Play Video
Unmanned Aerial Systems, UCAVS

SHAHPAR-II (BLOCK-II) BATTLE TESTED – UCAV

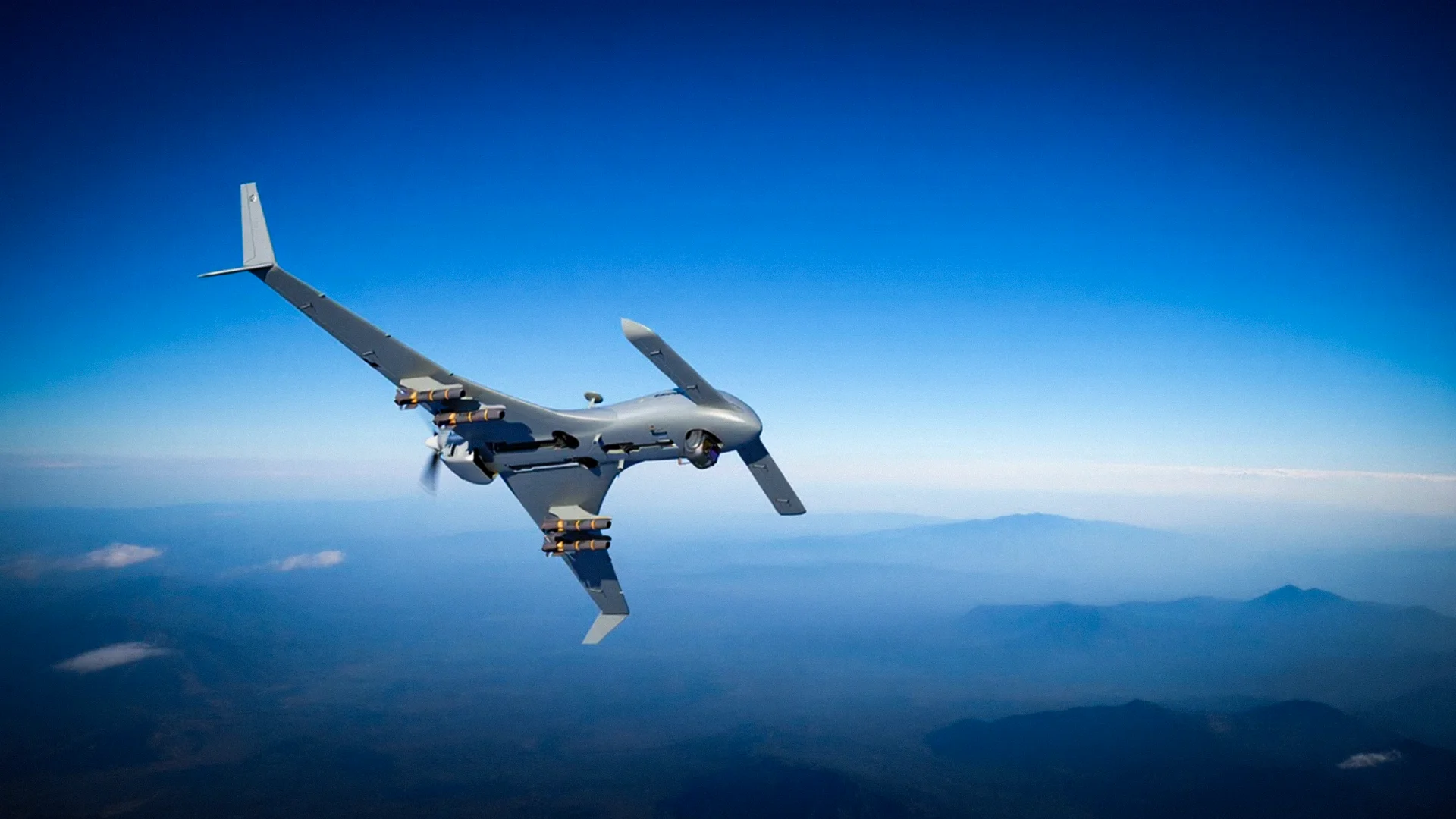

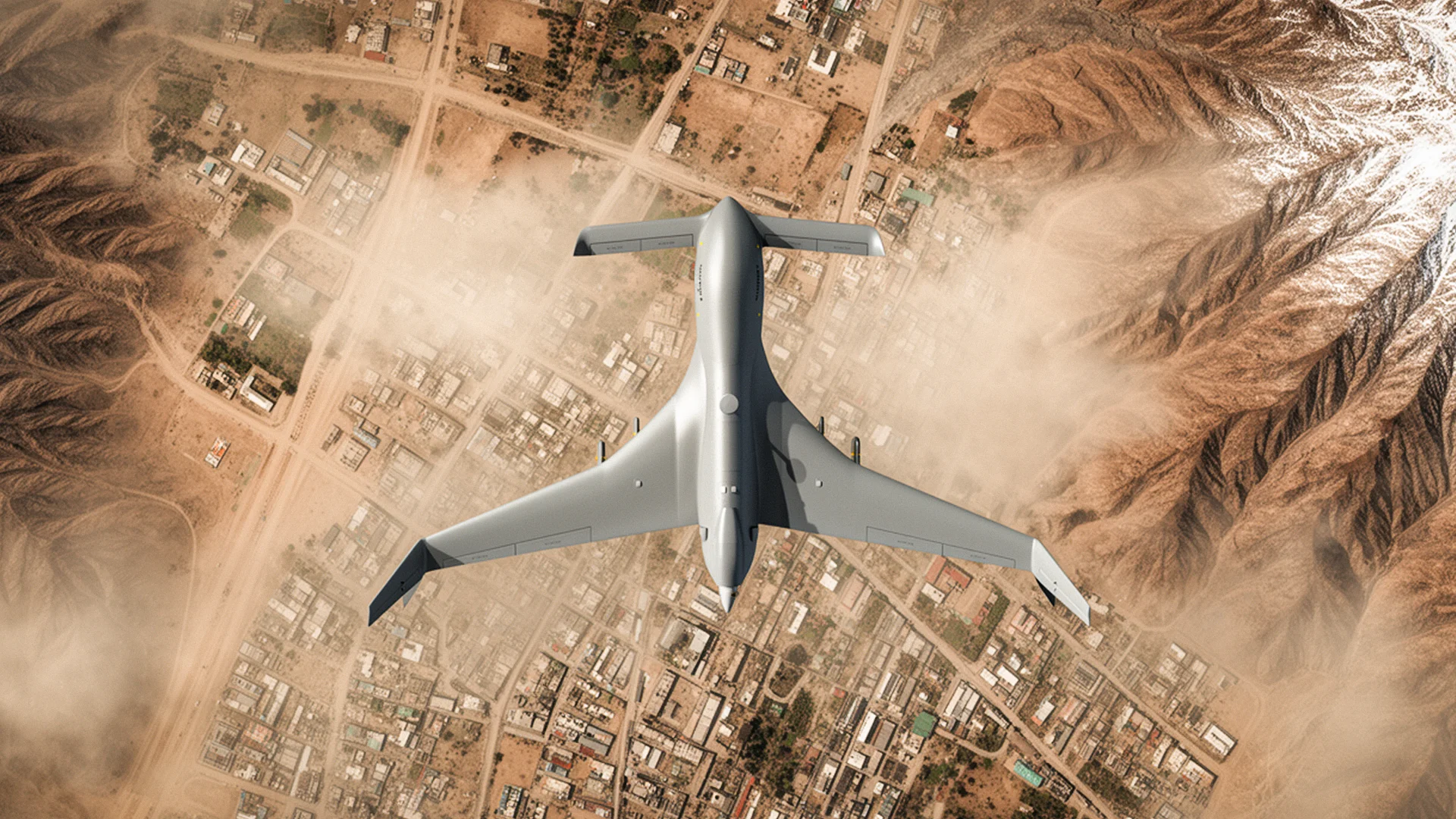

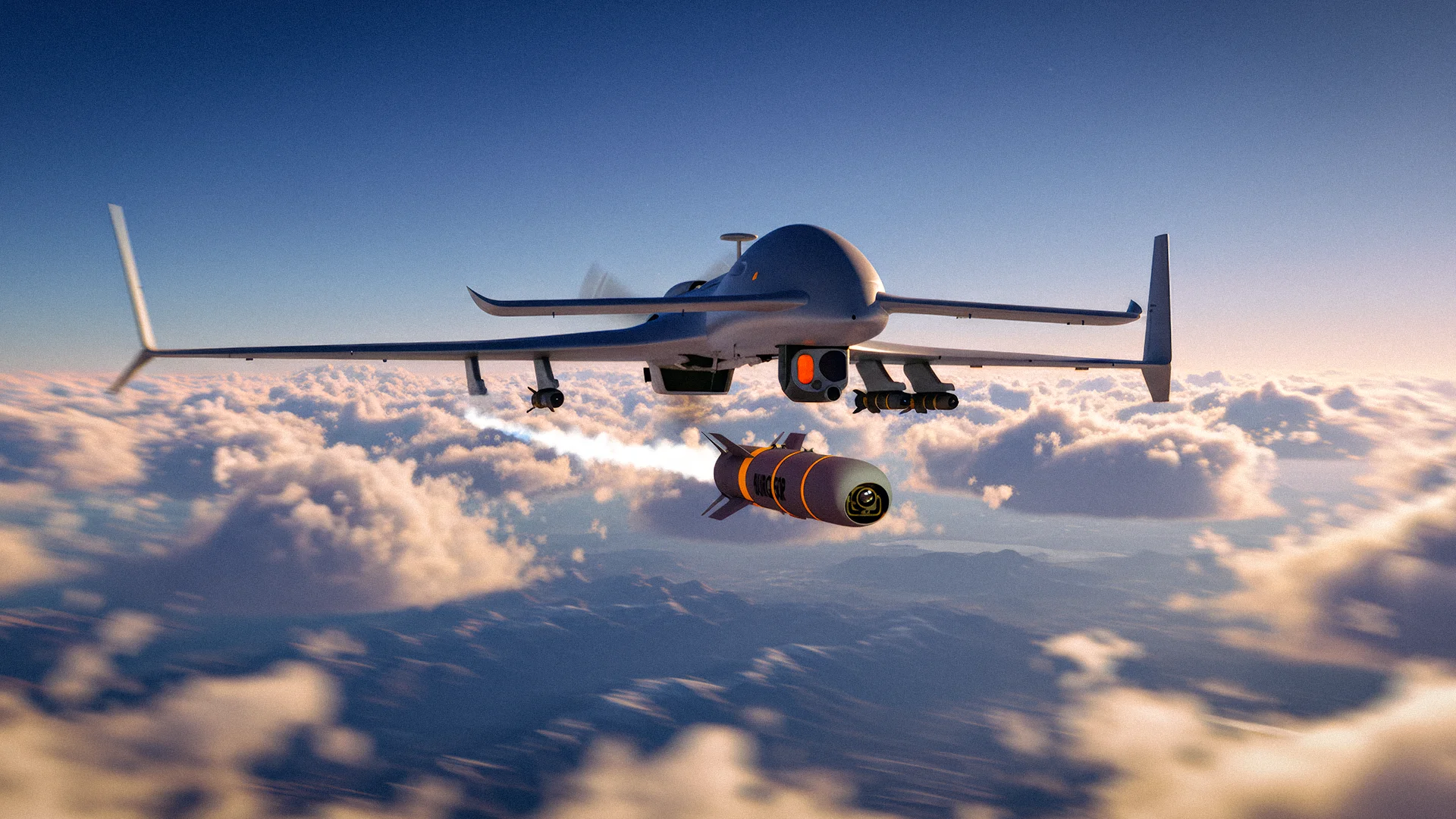

Shahpar-II Block-ll is a Medium-Altitude, Long-Endurance unmanned aircraft with armed capability. It has a modular airframe structural design comprising of advanced composite and metallic hybrid structure. Salient features include autonomous take-off and landing, robust autopilot scheme, user-friendly and comprehensive mission planning and management software suite in Ground Control Station, multiple redundant data links, and capability of integrating various types of payloads and weapons.

System Features

  • Multi-role Intelligence, Surveillance, Reconnaissance (ISR), Target Acquisition and Target Engagement (Armed) capability.
  • Equipped with ISR payloads EO /IR.
  • Multiple redundant data links with 02 x comm links in LOS while 01 x comm link in BLOS.
  • Equipped with ATC transponder, Identification Friend or Foe (IFF).
  • Indigenous system software, autopilot, dual redundant Avionics system, flight sensor suite (Dual redundant flight control computer, power management system, engine control computer, payload management computer, data links, control servos).
  • Image based GEO referencing.
  • Live and post flight video processing.
  • Molded high strength Composite Airframe structure with all retractable landing gears.
  • Internal pilot Option.
  • Ground Control System with consoles for Mission Commander, Pilot and Payload operator with capability of flying two UAVs simultaneously.
  • Ground Data Terminal with multiple communication / antenna equipment redundancy.

Technical Specifications

Datalink Range
LoS-250 Kms & BLOS - 1500 Kms
Endurance
20 Hrs (ISR), 12 Hrs (Armed)
Ceiling
25,000 Ft (ISR) & 22,000 Ft (Armed)
Wingspan
35 Ft
Weapons
120 Kg (04 x wing hard points)
External Payload Capacity
120 Kg (04 x Wing Hard points)
Internal Payload Capacity
50 Kg EO/IR ZUMR II HD payload (SAR of 45 kgs in Lieu of EO/IR)
Engine
140 HP Turbo-charged Engine
