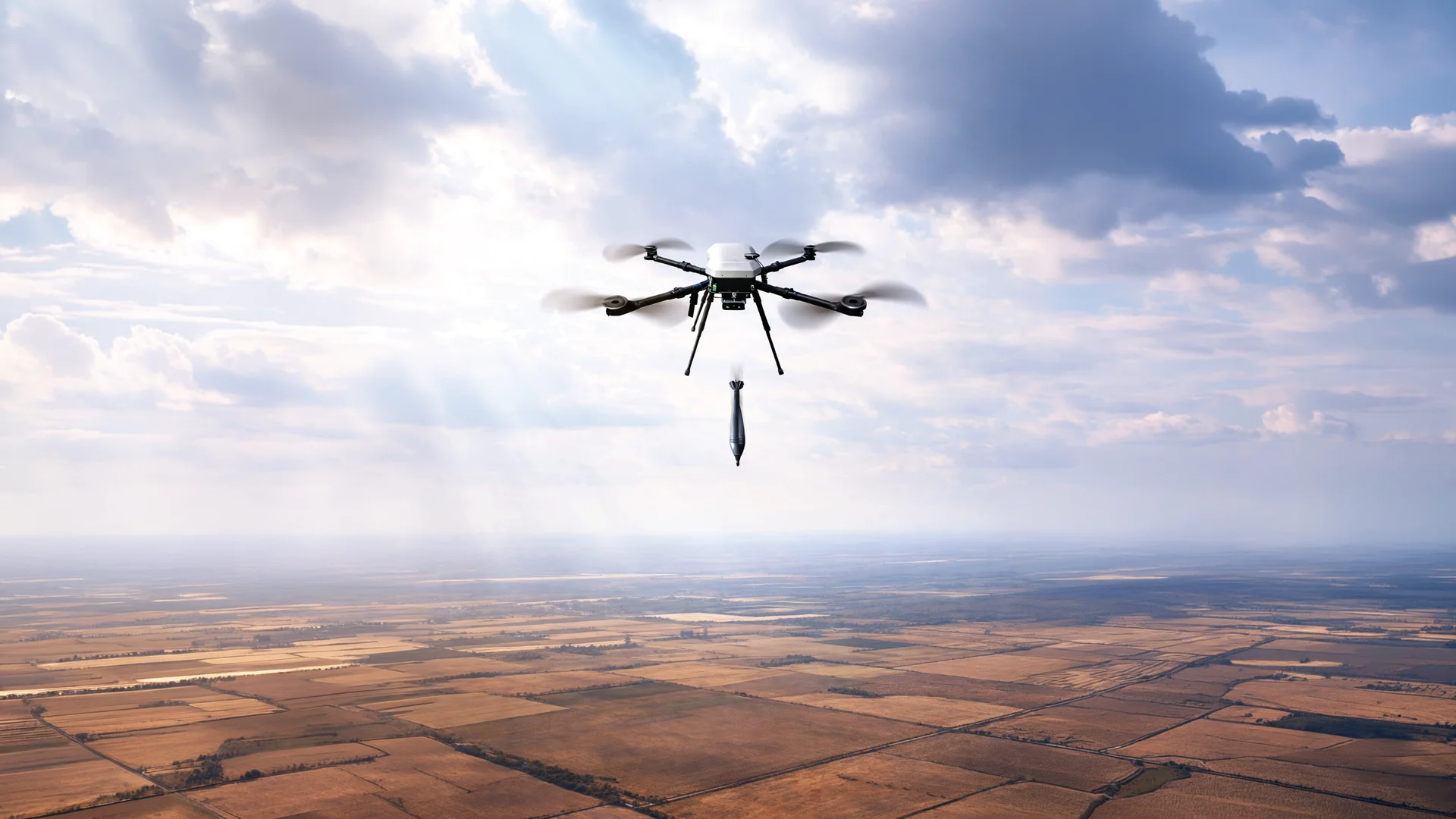

BEETLE MORTAR CARRIER QUADCOPTER

Unmanned Aerial Systems, VTOLs / Quadcopters

BEETLE MORTAR CARRIER QUADCOPTER

A versatile mortar carrier quadcopter engineered for ISR and precise engagement missions with modular payload capacity.

System Features

  • Multiple Morter Payload Dropping Capability
  • Complete Autonomous Operations with Pilot Override Option
  • Day/Night ISR Missions
  • Handheld GCS for AV and Payload operator
  • Man-Portable Design
  • Fast Redeployment

Technical Specifications

Range
5–8 Km
Endurance
60 mins ISR / 40 mins Payload
MTOW
18 Kg
Payload Capability
2 x 60 mm Mortar
Max Ceiling
3500 m AMSL
Wind Resistance
12 m/s
Hit Accuracy (Avg)
10 m
Dimensions
550x550x445 (without props)
Camera
EO
10 x zoom, 1080p, 30 FPS
TI
19 mm, 640×512, 25 Hz
LRF
1 Km (optional)
Navigation
Multi GNSS (GPS + GLONASS + BeiDou + Galileo)
Telemetry
Flt Modes, Voltage indicator, Signal strength, Flt Altitude / Attitude / Distance & Speed
Failsafe
Auto Return to Base / Land (in case of low battery & link failure)
