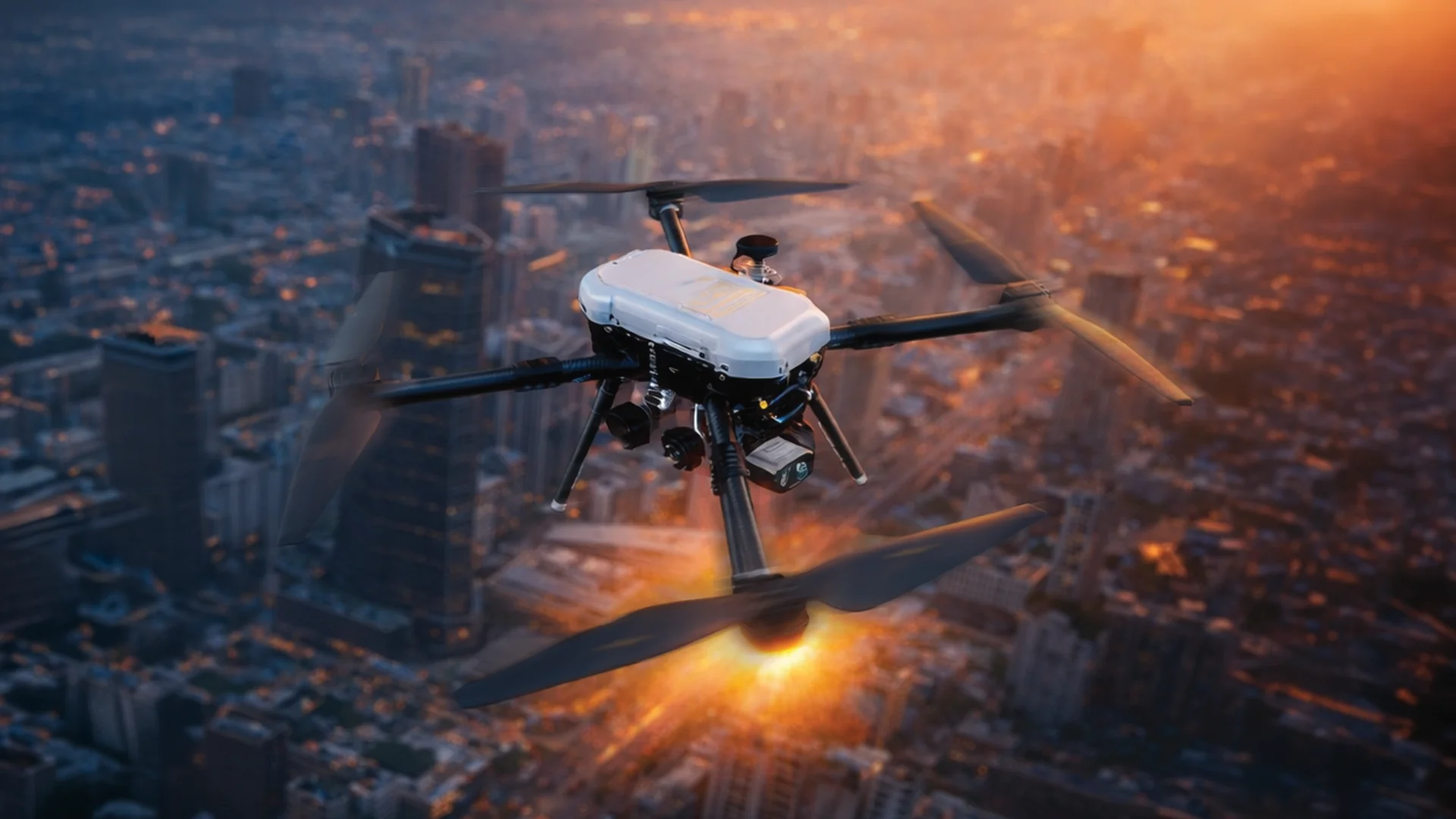

SCOUT MINI QUADCOPTER

Scout ISR-I is a Quadcopter UAV system for ISR Mission. The system can be effectively used for Surveillance, Search and Rescue and Battle Damage Assessment. Scout comes with following basic flight modes: Semi-Autonomous, Guided (Fly to Coordinates based on loaded Map) and Autonomous with way point navigation.

System Features

  • Versatile ISR Capability
  • Quadcopter Configuration
  • Multiple Flight Modes
  • Waypoint Navigation

Technical Specifications

Airframe
Quad Rotor Configuration, Carbon Fiber Structure, Man Portable
Range
5 - 8 Km
Endurance
55 mins
Max Op Ceiling
500m AGL and above
Sensor (Day)
10x Optical Zoom, FHD, 25 fps
Sensor (Night)
IR, Thermal Imager (19mm), 640 x 512
Max Take-off Weight
6 Kg
RTL
In case of Low Bty, Radio Fail-Safe
Navigation
Multi GNSS (GPS+GLONASS+BeiDou+Galileo)
Dimensions
600x600x400 mm
Battery
Li-ion, 1 x 22 Ah
Telemetry Data
Flight Modes, Voltage indicator, Signal strength, Flight Altitude/Attitude / Distance & Speed
Wind Resistance
Up to 20 knots
Ops Temperature
-10°C to +55°C
Horizontal Speed
15 m/s (50 Km/h)
