The MLRS FATAH-I is an advanced guided rocket system characterized by fast reaction, long range, high accuracy and firepower of high density. Its mission is to precisely attack and destroy enemy’s group and area targets, such as military bases, massive armored troops, missile launching sites, large airports, harbors and other important facilities.

Main Specifications

Range:	≥ 140km
Accuracy:	CEP < 50m
Rockets per MLV:	8
Capacity to engage 8 different Targets:	8km x 8km at max rg
Operating temperature:	-20 to +55°C
Shelf Life:	10 Years

Features

• Fast reaction
• Long range
• High accuracy
• Concentrated firepower
• Various munitions
• Self positioning and orienting
• High mobility
• Integrated fire control system

Baktar Shikan is an anti-tank missile weapon system which pursues the principle of optical aiming, IR tracking and automatically generated, remotely controlled and wire transmitted guidance signals.
The system can quickly be dis-assembled into four sub-units, each weighing not more than 25kgs, thus making the system man-portable. It can also be mounted on Cobra attack helicopters and Armored Personnel Carriers (APCs). Its long range, penetration power and a powerful anti-jamming capability, the system forms a potent defence against armoured targets. Baktar Shikan family of missiles is in service for more than two decades and a battle tested weapon held with different armies worldwide.

Performance Characteristics

Propulsion	Solid
Effective Range	3 Km
Operating Temp	-40 °C to + 50°C
High Anti jamming capability
Firing Capability	Day & Night
Hit Probability	90%
Rate of fire	2-3 rounds/min
Telescope	Magnification Field of View Wide IR Field of View Narrow IR Field of View	12x 6° +-49 mrad +-7 mrad
Range of fire	Elevation Azimuth	-7° to +130 O° to 3600

Features

• Battlefield tested weapon.
• Produced for inland forces and exported to many friendly countries.
• In service weapon due to Lethality, Reliability and Effectiveness against modern MBTs
• Day & Night Firing
• Quick reaction time
• High hit probability
• Rapid rate of fire
• Anti-jamming capability
• Easy operation & maintenance

RPG-7 Rocket Launcher

• A portable, Re-usable shoulder launched anti-tank Rocket-Propelled Grenade Launcher
• Effective and low-cost weapon widely used for anti-armor and in irregular operations.

Light Mortar 60mm

• Effective Support weapon for short & medium range targets
• User friendly, reliable in all weather operations
• Close-in-support for ground troops
• All type of qualified 60mm ammunitions are usable for operations

Mortar 81mm

• Effective Support weapon for short, medium and extended range targets
• User friendly, smooth bore, muzzle loading, reliable in all weather operations
• All type of qualified 81mm ammunitions are usable for operations.
• Dismantled in 3 loads (barrel, base plate, and bipod) for quick transport

Mortar 120mm

• Highly Effective Support weapon for medium and extended range targets
• User friendly, reliable with rapid deployment in all weather operations
• All type of qualified 120mm ammunitions are usable for operations
• Quick transportation with towable wheeled carriage for assemble Mortar

LDR-A4N is a high performance, compact and light weight system. The low mass and volume of the equipment enables the complete system to be carried by a soldier either in its transit case or in the soldier's rucksack. The LDR-4N is capable of designating up to 5 km using any user-defined codes, with excellent beam quality and stable bore sight over the full temperature range.

Features

• cquires target coordinates by measuring Range, Elevation and Azimuth Angle to the target with respect to LDR-4N
• Designates a target for laser-guided weapon homing on the laser spot

Specifications

Supply voltage	24V
Field of View of Telescope	4.5°
Magnification of Telescope	X13
Cooling Pump	Liquid Flow
LRF Range	10 Km
Energy	> 70mJ
Laser Beam Collimated Diameter	48mm
Divergence	<=0.35mrad< /td>
DES Frequency	0-21 Hertz
Laser Pulse Width	25nsec
Azimuth	360 Degree (1-6400) mils)
Elevation (Up)	28.5 Degree (0-499 mils)
Elevation (Down)	28.5 Degree (0-499 mils)
Battery Type	Ni-Cd
Lasing Cycle	30 sec
Weight	11.7 Kg
Dimensions (L x W x H)	36 x 34 x 17cm

AR-3 is a compact, high performance laser range finder that is suitable for stand-alone military-based range finding applications. It is ideally suited for end-users requiring installation to externally mounted platforms. It offers true plug and play compatibility within a host of military based environments.

Features

• 0.2Hz repetition rate
• Environmental performance to MIL-STD-810F
• Extensive on-board BITE facilities

Specifications

Laser Type	Nd: YAG (1.064 um)
Pulse Energy	10 mJ (nominal)
Pulse Width	10 nSec
Beam Divergence	< 1.0 mRad
Pulses / min	15 (30 for short time)
Field of View	2.0 mRad
Aperture	47mm
Range of Display	4 Digits LED
Range Accuracy	+5m
Max / Min range	9995 /200m
Range Blanking	200m - 4000m
Range update rate	0.5 Hz (max)
Magnification	X7
Field of view	120 mils
Eye Protection	OD 5
Battery Capacity	Ni Cd12V 0.5 Ah
Readings / Charge	Over 600 at 20 0C
Operating Temp.	-30 OC to +55 0C
Dimensions	25 x 20 x 11cm
Weight	2.2 Kg

TIB786-1

TIB786-1 is a short-range compact and light weight thermal imager-based night vision goggle comprised of 384x288 micro-bolometer FPA detector. This system provides true night vision capability for general area surveillance, perimeter security and border patrol etc. in all weather conditions, both day and night, in the presence of fog, some type of smoke and dust. It is primarily hand-held device but can also be mounted on Helmet for long missions.

DRI

	Vehicle	Human
Detection	1300m	900m
Recognition	500m	350m
Identification	250m	150m

TIB786-3

TIB786-3 is a Long Range compact thermal imager based night vision goggle comprised of microbolometer FPA Detector. It is primarily a hand held device but can also be mounted on Tripod for long missions. It has snap shot and recording feature. It has Light weight and long battery endurance of more than 6h operation.

DRI

	Vehicle	Human
Detection	3000m	2000m
Recognition	2000m	1000m
Identification	1200m	800m

ABLDR-2 is a long-range high-performance laser-based system. It can measure the range and designate the target for LASER guided weapons.

Specifications

Laser Type	Nd - YAG
Emission Wavelength	1064nm
Range Capability	(200 to 20,000m) + 5m
Output Pulse Energy	> = 80omJ
Beam Divergence	0.35 mRad
Pulse Width	20+ 5nSec
Designation Frequency	8 - 21Hz(NATO & Custom)
Lasing Cycle	90 Sec
External Power	+28V + 10%
Power Consumption	450 Watt
Data Communication	RS-422 (Opto coupled)
Mechanical Interface	Integrated in 17” Payload
Operating Temperature	-20 oC to +55 0C
Storage Temperature	-30 oC to +70 oC
Encapsulation	IP67 (Laser Cavity)
Vibration & Shock	MIL-STD-810G & MIL-STD-461E
Weight (without battery)	<=7.2Kg< /td>

ABSAR-C is a long-range TI sight for APC commander. It enables the Commander to see during night as well as day in pitch dark situations under smoke and adverse weather conditions such as rain and fog.

Specifications

TI Sensor Type	Un-cooled
Sensor Size	640x480, 17um
Spectral Response	8-14um
Objective Lens	75 mm, Fixed Focus (A-thermalized)
Focus Range	5m - Infinity
FOV	8.20 X 6.20
NETED	<=100 mK
Electronic Zoom	1X, 2X, 3X, 4X
Polarity	WH/BH/Sepia
Display	10.4” LCD Display
Video/PICs Storage	64Gb
Video Output	PAL
Battery Type	24V Li-lon (Recharge) battery Pack
Endurance Time	> 8hrs
Operating Temperature	-200C to+ 550C
Storage Temperature	-300 C to + 600 C
Encapsulation	Camera IP67, LCD IP66
Vibration & Shock	MIL-STD-810G
Weight	< 13 kg (without battery)

Driver Night Vision Device (DTI) is a short range compact thermal imager based night vision system for AK-1 Tank driver. DTI is a very efficient under complete darkness, smoke or adverse weather conditions such as rain and fog.

Specifications

Sensor Type	Un-cooled
Sensor Size	384x288, 17um
Spectral Response	8-14 um
Objective Lens	13 mm, Fixed Focus (A-thermalized)
Focus Range	3m - Infinity
FOV	28°x21°
Field of Regard	± 310
Electronic Zoom	1X, 2X
Polarity	White Hot /Black Hot
Display	0.8” Color AMOLED (800 x 600)
Eye Piece	Relax View
Video Output	PAL
Battery Type	Li-ion battery Pack (Rechargeable)
Endurance Time	> 8hrs
Operation	-300 Cto+ 550C
Storage Temperature	-400 C to + 700 C
Encapsulation	IP67
Vibration & Shock	MIL-STD-810G
Weight	≤8 kg (without battery)

ABSAR-D is a short range compact thermal imager-based night vision system for APC driver sight. It enables the driver to see during night as well as in day under complete darkness, smoke or adverse weather conditions such as rain and fog.

Specifications

Sensor Type	Un-cooled
Sensor Size	640x480, 17um
Spectral Response	8-14 um
Objective Lens	19 mm, Fixed Focus (Athermalized)
Focus Range	3m - Infinity
FOV	29.8°x23.2°
Electronic Zoom	1X, 2X, 3X, 4X
Polarity	WH/BH/Sepia
Display	8.0” LCD display
Video/PICs Storage	64GB
Video Output	PAL
Battery Type	Li-ion battery Pack (Rechargeable)
Endurance Time	> 8hrs
Operation	-200 Cto+550C
Storage Temperature	-300 Cto+ 600C
Encapsulation	Camera IP67, LCD IP66
Vibration & Shock	MIL-STD-810G
Weight	<=8 kg (without battery)

FAOD-2 is a compact multi-sensor observation device. It is employed for target GPS coordinates calculation on LCC grid, and forward area surveillance with the help of in-built thermal imager, Day sight and associated sensors.

Specifications

TI Sensor Type	Un-cooled
Sensor Size	640x480, 17um
Spectral Response	8-14 um
Objective Lens	100mm (Manual Focus)
Field of View	6.2° x 4.7°
Electronic Zoom	1X, 2X, 3X, 4X
Day sight Type	CCD
Zoom Ratio	30X
LASER Type	Eye Safe (1540nm)
Maximum Range	5Km+2m
Compass Accuracy	±0.5°
GPS Code	P(Y) code or C/A code, LCC
Display	Color AMOLED Display (800x600)
Video Output	PAL
Battery Type	Li-ion battery pack (Rechargeable)
Battery Life	>4 hours
Mechanical Interface	Tripod Mount
Operation	-200C to +500C
Storage	-250C to +550C
Encapsulation	IP67
Vibration & Shock	MIL-STD-810G
Weight	< 4.2 Kg (without battery)

ALHARIS-75 is a long-range thermal imager-based night vision surveillance sight. It can be integrated with any type of high-resolution pan-tilt with video over Ethernet. It can be equally used in the day & night time.

Specifications

Sensor Type	Un-cooled
Sensor Size	640 x 480, 17 um
Spectral Response	8-14 um
Objective Lens	75mm, Fixed Focus (A thermalized)
Focusing Range	5m - Infinity
Field of View	8.2° x 6.2° (w/o zoom)
Polarity	WH/BH/Sepia/Fire/lron/Rainbow
Electronic Zoom	1X, 2X, 3X, 4X
Video Output	PAL, Ethernet
Connectivity	Ethernet (RJ-45), PELCO-D
PTZ	Yes (Optional)
Operating Voltage	12V DC
Operation	-35°C to 55°C
Storage Temperature	-40°C to +70°C
Encapsulation	IP67
Vibration & Shock	MIL-STD-810G

• Area surveillance
• Perimeter Security

TISA-3SA50 is a compact light weight thermal weapon sight which can be mounted on short range weapons (SMG, G3, M4). It enables the soldiers to aim in the darkness, even in adverse weather conditions.

Specifications

Sensor Type	Un-cooled
Sensor Size	384 x 288,17 um
Spectral Response	8-14 um
Objective Lens	50mm, Manual Focus
Focusing Range	5m - Infinity
Field of View	7.4° x 5.6° (1X)
Display	Color AMOLED Display (800x600)
Electronic Zoom	1X, 2X, 4X
Polarity	WH/BH/Sepia/Fire/ lron/Rainbow
Battery Type	1x Li-ion (Rechargeable) battery
Battery Life	>5 hours
Mechanical Interface	MIL- STD 1913, STANAG 2324
Operation Temp.	-350C to +550C
Storage Temp.	-400C to +700C
Encapsulation	IP67
Vibration & Shock	MIL-STD-810G
Weight	< 0.7 Kg (without battery)

LTS786P is an early warning device which gives audio and visual alarms of threat by sensing a laser beam aimed at it from any direction.The exact location of the threat is indicated by nine LEDs. It has the capability to differentiate between a Laser Range Finder, Laser Target Designator or a Laser Target Tracker Signals. It can be used on stationary or moving objects of any size or shape.

• Wave length response 0.8 ~1.06 microns
• Can be fitted on tanks, bridges and installations

LTS 1can be coupled with acoustic alarms,smoke generators and other counter-measures.

Digital Goniometer (DGM)

The Digital Goniometer (DGM-1) is used with Laser Range Finder to precisely measure the coordinates of the target. It can be interfaced to any aiming device through a dovetail. Interface for mounting on tripod is provided by TPI 11 and diameter of 5/8 inch.

• Digital display
• Measuring accuracy
• Azimuthal 1Mil (360 deg) Elevation 1 Mil
• Weight : 4.2 kg

Mobile Field Kitchen is a trailer-based kitchen, towable with a 2.5 ton vehicle. It has independent suspension system with the capability of cross country mobility. It can provide healthy and hygienic food to troops in field exercises. It has been specifically designed for Pakistan Army. It can be cooked Food for 150 personnel in 2 hours. It is equipped with three cooking modules, one multipurpose module and one tandoor module. Each module has its independent multifuel burner. These multi fuel burners are operable on diesel, kerosene oil and liquified petroleum gas. The cooking modules are made of food grade material SS 304.

Features

• 3x Cooking modules of 75 liters each
• 1x Multipurpose module
• 1xTandoor module
• 5x multifuel burnes and 2x solid fuel burners
• Each module is made from food grade material (SS 304)
• 1x Tea kettle of 50 liters

Specifications

Total weight	2500 Kg
Length	4082 mm (transportation mode) 2156 (non transportation mode)
Width	2457 mm
Height	2179 mm

VMK is indigenously developed kitchen equipment for mobile application of security forces. All components of kitchen have been fitted into a container making it flexible for transportation to desired locations. The container can be unfastened easily for detaching from carrying vehicle with the use of crane/5-ton lifting truck. VMK has capacity to cook food for 400 persons (single dish) in two hours. The container has been fitted with various kitchen equipment like microwave oven, refrigerator, dough mixer, instant geyser, seating arrangements for crew, central exhaust system, kitchen hood and pressure pump water tank. The heating source of VMK is Multi Fuel Burners.

Features

• Provides healthy and hygienic food
• Compact vehicle mounted with good cross country mobility
• Can cook Pakistani food for 150 personnel in 2 hours
• Uses multi fuel burners ( kerosene, diesel and LPG )
• Carries 3 days ration & 1000 liter water
• Setting up time is 10 minutes

Specifications

Length	5300 mm
Width	2440 mm
Height	2130 mm

TSM-II tank firing simulators for T59/T69 Tanks are used by Army for the training of their gunners. The simulators are upgraded through industrial grade DAQ system and software with enhanced training features. These simulators provide realistic firing practice in simulated 3D battlefield enviroment to equip the trainee with requisite tactics and assume high value in view of conservation of actual equipment and ammunition

Features

• Realistic 3D battlefield environment for trainee through customizable scenarios based on various static and moving targets
• Real time electronic monitoring of all controls via Instructor Console
• Electronic logging of all trainees’ actions
• Induction of faults and emergencies to analyze trainee’s response
• Basic, intermediate and advanced level exercises
• Performance record and graphical analysis of trainees’ performance
• Automation of controls with state of the art industrial grade Data Acquisition System (DAQ)
• Sound simulation for realistic training

Main Specifications

Power Supply	220 V ±10%,50H
Power Consumption	Less than 5KW
Controls	Replica controls for simulated response
Type of Platform	Moving platform for gunner

The original 37mm twin barrel AD gun has been upgraded in order to meet the present combat threats.The upgraded gun with its new firing system gives a unique combination of modern technology resulting in a very reliable weapon system. Capable to track high speed targets coupled with auto ranging.The gun can be operated in three modes, i.e. joystick, handheld fire control and laser aiming sight.

• Sunlight viewable alpha numeric displays
• Provision of interfacing with multiple guns (optional)
• Off Gun tracking of target for stability
• Computer aided leveling
• Smart electronics for gun control
• Power electronics for motors
• Limit switch for safety arc range
• Emergency stop
• Motors for azimuthal & elevation movements
• Horizontal and vertical shaft encoder
• Fire safety switch

We design, develop and manufacture customized batteries and power sources for military use. The batteries are rigorously tested and produced by ISO 9001:2000 certified facilities, maintaining the most stringent international quality control standards. We produce more than 30 different types of batteries.

Nickel Cadmium Cells/ Batteries

Nickel Cadmium Batteries have a rugged construction and proven reliability. Characteristics like high power capabilities, a wide operating temperature range, long life cycle and resistance to maltreatment makes them suitable for many applications.

Lithium ThionyI Chloride Batteries

Lithium Thionyl batteries have highest cell voltage and energy densities. The cells have been fabricated in variety of sizes, designs and configurations to meet particular requirements.

Zinc Silver Oxide Batteries

These batteries have numerous applications particularly where high energy density batteries are used such as power sources for tactical missiles, torpedoes, GPS and various military communication and electronic equipment with excellent performance in range of 10 Co to + 50 Co.

Uses:

These batteries are used in various types of fixed wing and rotary aircrafts.

• Naval vessels
• Missiles
• Communication equipment
• Torpedoes, etc

OVERVIEW

122mm MBRL is the most widely used weapon system employed by many nations of the world for the purpose of neutralization of area targets by saturating the area with large number of rockets.

FEATURES

• Propellant Design with increased volumetric efficiency
• Insulation Liner & Ignition System
• Nozzle to accommodate the required high impulse & thrust
• Fin Material and Profile
• Fin Unit Assembly for aerodynamic performance with better stability
• Muzzle Safety/Back Blast: < 50 m

SPECIFICATIONS

Range	> 35 Km
Storage Temperature	+5 to+45° C
Operating Temperature	-20 to+55°C
Fuse	PD/Air Burst
Lethal Area	50 m2
Warhead type	HE
Warhead Weight	18 kg
Muzzle Safety /Back Blast	< 50m

OVERVIEW

Rocket delivered mine sys (RDMS) is a versatile, quick response accurate and effective weapon system, which is primarily used to ward off enemy’s unexpected threat development, impede the speed of his operation by deploying anti-tank (A/T) and anti- personnel (AP) mines into the desired area. It enables the commander to mine the area of interest and supplement already laid mines in the shortest possible time.

FEATURES

• Multi tube mobile launcher
• Deploy mines from 7~14 km as per requirement
• Firing mode for single rocket and salvo firing
• Electronic bay opening fuse with preprogrammed delay
• Fire control unit (FCU) with user friendly interface
• Simulation mode for checking of connectivity and health of rocket and fuse before firing.

SPECIFICATIONS

Weight	69kg
Length	3mm
Range	14km
Storage Temperature	-5°C ~ + 45°C
Operating Temperature	-20°C ~ + 52°C
Warhead	8x A/T or 128 x A/P Mines

OVERVIEW

PAKFIRE is a modular, reliable, secure, user friendly and fully integrated Artillery Fire Control System that automates all operational functions of artillery and ensures fast and accurate fire on targets. It provides an automated solution for Preparation, Coordination, Dissemination, Execution and Modification of Fire Support Plan, Fire Plan, and Gun programs. It has a scalable system architecture that is suitable for present combat scenarios and can be deployed at all combat echelons. It has been tested thoroughly in field trials and inducted in Pakistan Army.
PAKFIRE interfaces with all type of external systems, like radars, meteorological systems, UAVs and Command & Control through wired/wireless media.

• Artillery fire direction module
• Fire support planning module
• Counter bombardment module
• Information battle management module

FEATURES

• Facilitates Observer in identification/acquisition of targets and passage of fire orders
• Handles all artillery procedures and functions
• Computes accurate ballistic data for all types of ammunition
• Incorporates scanned, vector imagery and 3D terrain maps
• Available for battery, regimental, divisional and up to operational level configurations
• Advanced level of networking features to ensure continuous connectivity
• Ruggedized hardware to work in harsh environmental conditions based on Military specifications

OVERVIEW

Integrated Battlefield Management System (IBMS) is designed for the operations of amour units in the field to meet the requirements of future battlefield. The user friendly system provides battlefield awareness through comprehensive land navigation system based on GPS and digitized maps. It enables commanders in mission planning, modification and dissemination of plans, monitoring of battlefield at tactical and operational level, through safe and secure radio network. It facilitates integration of external sensors for data/information acquisition and showing it within the scope of C4I environments. IBMS also facilitates commanders in remote firing of AAMG by auto tracking the aerial and ground targets from inside the tank.

MAJOR MODULES

• SITUATIONAL AWARENESS MODULE
• COMBAT MESSAGING SYSTEM MODULE
• TACTICAL MISSION PLANNING MODULE

FEATURES

• Safe and Secure Information Sharing through adhoc-networking of radios
• Remote Operation of 12.7mm AAMG from inside the tank
• Driver panel to facilitate driver to follow the correct route with the help of directional bars
• Auto Target Tracking for Arial and Ground Targets
• Laser Target Indication to indicate location of the hostile elements and its engagement
• Ruggedized hardware to work in harsh environmental conditions based on Military specifications

OVERVIEW

TSM-II tank firing simulators for T59/T69 Tanks are used by Army for the training of their gunners. The simulators are upgraded through industrial grade DAQ system and software with enhanced training features.
These simulators provide realistic firing practice in simulated 3D battlefield environment to equip the trainee with requisite tactics and assume high value in view of conservation of actual equipment and ammunition.

• Fixed Wing Fighters
• Rotary Wing Aircraft
• Cruise Missile
• Unmanned Air Vehicles (UAV)/RPVs

FEATURES

• Realistic 3D battlefield environment for trainee through customizable scenarios based on various static and moving targets
• Real time electronic monitoring of all controls via Instructor Console
• Electronic logging of all trainees’ actions
• Basic, intermediate and advanced level exercises
• Performance record and graphical analysis of trainees’ performance
• Automation of controls with state of the art industrial grade Data Acquisition System (DAQ)
• Sound simulation for realistic training

SPECIFICATIONS

Power Supply	220 V+10%,50 H
Power Consumption	Less than 5 KW
Controls	Replica controls for simulated response
Type of Platform	Moving platform for gunner

OVERVIEW

These are state-of-the-art high fidelity driving simulator for realistic driving and authentic training.

FEATURES

• State-of-the-art high fidelity driving simulator for realistic driving and authentic training
• 6-DOF Motion Base with advanced Motion Drive Algorithm (MDA) for accurate motion cues
• High performance graphics and sound engine
• Extensive visual effects (fog, rain, dynamic shadows, headlights, ambient lighting etc.)
• Instructor Console with a versatile training and assessment system
• Wide angle high resolution video projection system for immersive driving experience
• Original vehicle cock-pit and driving controls
• High performance graphics engine with a variety of training exercises and simulation scenarios
• Realistic audio cues with surround-sound audio playback system
• On-road and off-road driving with variety of tracks

OVERVIEW

Training simulators for various weapon systems including Harbah Weapon System provides virtual real time training environment for weapon system operators.

FEATURES

• Onboard Power Distribution
• Power Switching Capability
• from Ground to Onboard
• Pre-programmed Simulations
• Detailed Data Analysis
• Data Recording

APPLICATIONS

• Training Simulators
• System Troubleshooting
• System Integration

SPECIFICATIONS

Type of Platform	Air, land, Marine, Virtual (Simulation only) and Physical( Platform enabled)
Controls	6-DOF enabled simulation. User Friendly and Master Control Enabled
Power Consumption Power Supply Operating Temperature Humidity RS-422 Links for Command Distribution, Data Logging Option	In conformance with Military Standards MIL-STD 1553B

OVERVIEW

COMINT payload is a complete spectrum monitoring and analysis system for aerial / UAV platforms providing scanning and logging up-to 3 GHz on a solid state hard drive. The system is designed to cope with the challenges of modern dense communications network environments and to perform long- range, high endurance COMINT missions. The system's tasks are to scan, intercept, measure, locate, analyze, classify and monitor communications transmissions.
The modular architecture, the compact size, the low power consumption and the flexible interfaces of the COMINT Payload enables its integration in a variety of Aerial Platforms & UAVs from Tactical to MALE/HALE categories.

FEATURES

• Lightweight, portable and easily deployable form factor.
• Spectrum search data transmitted via telemetry link to ground station.
• Onboard threat library.
• FPGA based high sensitivity receivers.
• User friendly system software application
• EMI / ECM Compliance.

SPECIFICATIONS

Dimension

Weight

Frequency Range

Main Box	440 x 200 x 290mm
Antenna Scanning	290 x 200 x 100mm
DF Antenna	380 x 100 x 100mm
Main Box	290 kg
Antenna	5 kg
20 MHZ to 3 GHZ

OVERVIEW

GSM Communication & Tracking System is a cost effective cellular detection system that acts as virtual BTS. System detects International Mobile Subscriber Identity [IMSI) and International Mobile Equipment Identity (IMEIJ parameters of all the target mobiles in its vicinity to avoid usage of unauthorized cell phones within the designated area and maintains the log accordingly for post analysis.

FEATURES

• Frequency range 20MHz-3Ghz
• Scan Rate 21 GHz/s
• Instantaneous bandwidth 40Mhz
• Software based standalone portable GSM BTS with capability of mobile phone detection.
• Extraction of IMSI &IMEI parameters for network intrusion detection.
• Report generation of captured cell phones.
• Network management system for operation in multiple zones.
• Silent Call generation

OVERVIEW

This transmitter is based on PCM-FM Continuous Wave transmission in S-band. The PCM-FM is a continuous phase modulation scheme in which two frequencies are used but the switch over takes place without any abrupt change in the phase. Such a modulation scheme is good in a way that it can result in the efficient use of the bandwidth in comparison to the simple FSK modulation scheme.

SALIENT FEATURES

• Complete solution of transmitting input signal.
• Telemetry data
• Wave forms (PCM-FM, upgradable to QPSK)
• Advanced encryption features
• Compact, lightweight and rugged

SPECIFICATIONS

Frequency Band	S-Band
Modulation scheme	PCM-FM
Supported Data Rates	100 kbps / 5 Mbps
Output Power	10 W
Temperature Range	40 C to +85C
Dimensions	12cm x13.6cmx6.5 cm
Weight	1.2 kg

OVERVIEW

CTX-10R is designed for telemetry, sub and supersonic airborne application (for high data-rate and video signal).
The RF section of the transmitter is designed on state-of-the art GaN technology. Low power consumption, Rugged and light weight product. DC-Dc converter is also implemented to provide wide input dc voltage range from 22-30V.

FEATURES

• Wide Band GaN Technology.
• Light weight & Robust
• Ruggedized for military applications.

SPECIFICATIONS

Operating Frequency	S-Band
Operation Mode	CW
RF output power	Up-to 10 W
Bandwidth	Up-to 300 MHz
Modulation	PCM-FM
Modulation BW	0.1~5.0 MHz

OVERVIEW

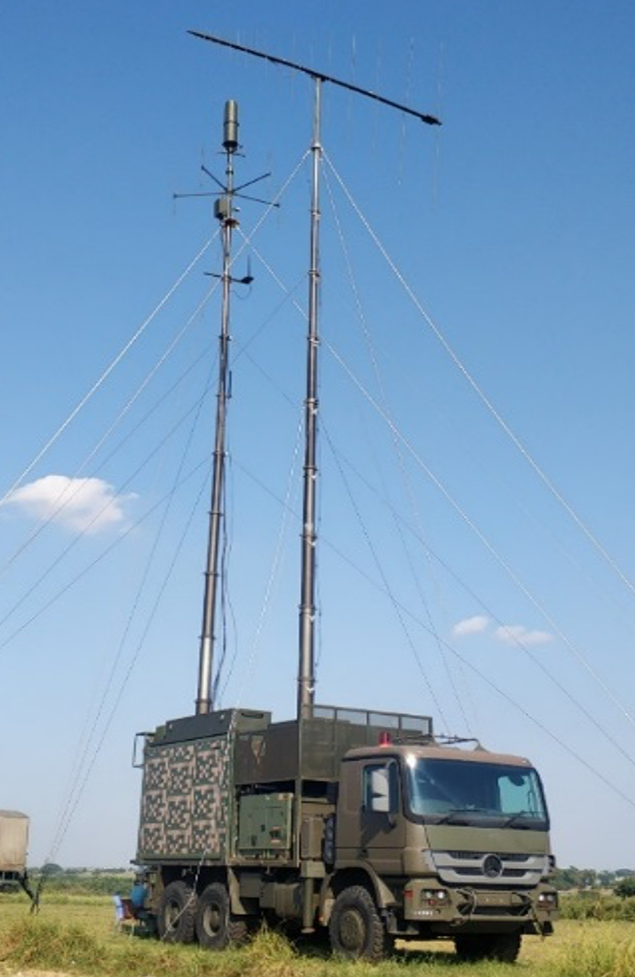

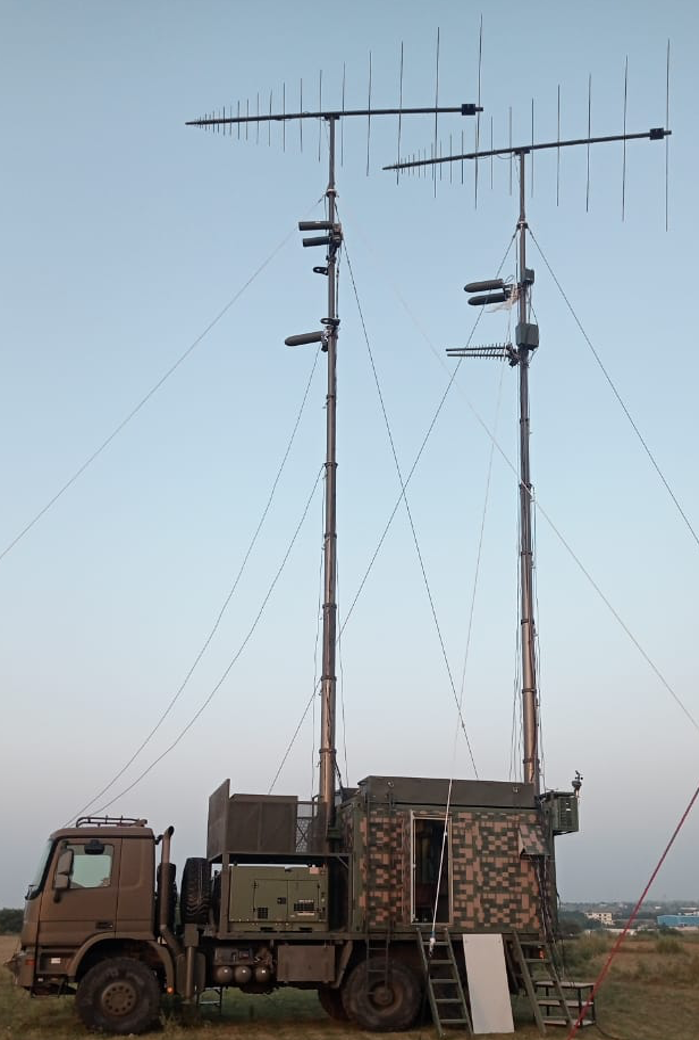

The Integrated Electronic Warfare System (IEWS) has wide band spectrum scanning, Interception, Monitoring, Direction Finding, Localization and Jamming capability of RF Communication Signals from 30 – 6000 MHz. Complete system comprises of 3 Electronic Support Measures (ESM) Stations, 2 Electronic Counter Measures (ECM) Stations, 1 Command and Control (C2) station and 1 Repair and Support Vehicle (RSV).
It has capability to decode & classify analog and digital schemes including AM, FM, FSK, PSK and other military standards. Direction Finding system uses 5 channel correlative interferometry for Fixed Frequency and Frequency Hopping targets. ECM system is capable to operate in sequential, barrage, multi-barrage, spot and multi spot modes.
The command and control (C2) system allows decision making based on assimilation of intelligence from multiple EW sensors / stations. IEWS system has a portable design which allows deployment of system on any platform. The system also has a user friendly customizable graphical interface for operator convenience.

ESM SYSTEM SPECIFICATIONS

Frequency Range	30 MHz – 6 GHz
Sensitivity	-110 dbm or better
Instantaneous Processing	300 MHz Bandwidth (5 simultaneous targets)
Scan Rate	1200 GHz/sec or better
Hop Rate	1000 Hops/sec (configurable for higher hop rates)
SNR	15 dB for FF and 7 dB for FH Analysis
DF Accuracy (for FF & FH)	Instrument Level 1o RMS System Level 2o RMS
DF Response Time	0.5 milli-sec
Power Configuration	System equipped with Power generator and UPS
Communication Link	Data link based connectivity with C2

ECM SYSTEM SPECIFICATIONS

Frequency Range	30 MHz – 6 GHz
Freq Hopping Jamming	1000 hops/sec (configurable for higher hop rates)
Output Jamming Power	1000 W (30 – 500 MHz) 500 W (500 – 1000 MHz) 200 W (1 – 3 GHz) 50 W (3 – 6 GHz)
No. of Jamming targets for FF Radio Nets	24 FF targets (30 – 3000 MHz) 4 FF Targets (3-6 GHz)
Jamming FH Radio Nets	8 FH targets (30-3000 MHz) 4 FH targets (3-6 GHz)
Power Configuration	System equipped with Power generator and UPS
Communication Link	Data link based connectivity with C2

C2 SYSTEM SPECIFICATIONS

Tactical Picture Awareness	Automatic identification of Comm nets along with display of Comm Order of Battle (COB)
Threat Library	Communication Signals parameter storage and extraction capability for emitter identification
Offline Signal Analysis	Signal analysis of recorded files for post review
Communication Link Range	25 Km
Data Rate	4 Mbps
Power Configuration	System equipped with Power generator and UPS
Communication Link	Data link based connectivity with slaves stations and HQ
